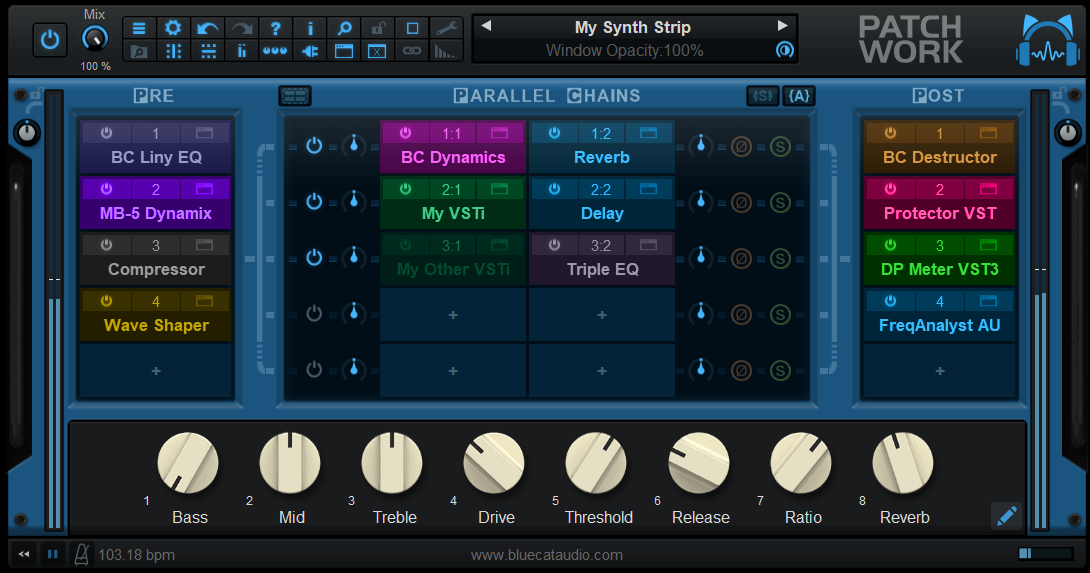

Blue Cat's PatchWork is a universal plug-ins patchbay and multi FX that can host up to 64 VST, VST3, Audio Unit or built-in plug-ins into any Digital Audio Workstation (DAW) in a single instance, with both serial and parallel routing options.

It is possible to chain effects in series or create up to 8 parallel chains that can be activated independently. This lets you create your favorite effects or instruments configurations within the plug-in, without the need for multiple busses. These configurations can be saved as presets and recalled instantly, or shared with multiple DAWs, using any plug-in format (full list below). Use the built-in audio effects to add color to your own plug-in chains.

Despite the name, you can forget about wires or cables: configuring plug-ins routing is as simple as adding or removing a row or a column in the rack's matrix. All plug-ins can also communicate with each other or with the host application using the virtual MIDI ports offered by the plug-in.

For each plug-in slot, latency compensation, presets management, undo/redo integration, audio i/o selection and individual plug-in bypass are included for optimal operation. The plug-in also stores the position of the window for each plug-in so that the layout is restored with your session or saved with presets.

Also, sub plug-ins can be automated or controlled with external control surfaces using Blue Cat's PatchWork parameters mapping capabilities.

This product is available as an audio plug-in (effect or a virtual instrument) and standalone application, so that it can used alone or inserted on any type of track in your favorite DAW, with up to 16 audio channels.

Input and output level meters are also available to monitor the signal that is dispatched to inserted plug-ins, including side chain and aux channels.

Blue Cat Audio Standards:

• Available as a standalone application and in most plug-in formats for Mac and Windows.
• Full MIDI control and automation support, MIDI Learn.
• No CPU load on idle: processing shuts down when fed with silence (optimal CPU usage).
• Customizable user interface with transparency & zoom.
• Smooth Bypass: noiseless plug-in activation / deactivation.
• Undo/Redo.
• Full featured integrated presets manager.
• Copy/paste the state of the plug-in between instances.
• Any sample rate supported.

Version 2.68

• New option to disable "suspend processing on silence" for plug-ins that do not report tail size properly (such as Valhalla plug-ins).
• Added .aif files support in built-in audio player.
• Reduced GPU usage under MacOS Sonoma, now that Apple has fixed the performance issue (Sonoma 14.3 and newer required).
• Fixed Mix parameter not always properly recalled when loading a preset.
• Fixed an issue with stuck MIDI notes with some VST3 plug-ins.
• Fixed a potential issue with VST3 plug-ins using unicode characters in parameter names and values.
• Fixed a crash with some VST3 plug-ins requiring inputParameterChanges (such as Martinic plug-ins).
• Fixed crash on Apple Silicon and wrong preset names on other platforms when loading VST3 plug-ins that define presets without names (such as FabFilter plug-ins).
